PRODUCT TECHNICAL SPECIFICATIONS

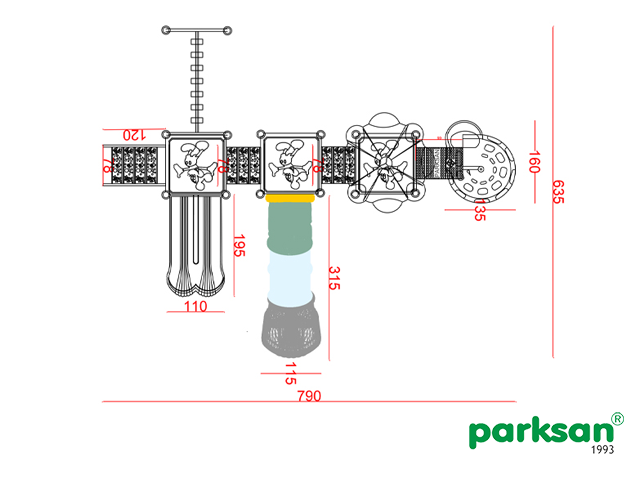

Seating Area: 635x790 cm
Safety Area: 1035x1190 cm
Slide Connection Height: 100cm - 150cm - 200cm
Age Group: +3 Years
PRODUCT SPARE PARTS
-POLYETHYLENE ROOF - 1 PIECE
-H:100cm DOUBLE PLAIN SLIDE – 1 PIECE
-H:150cm TUBE SLIDE – 1 PIECE
-H:200cm HELIOCLIDE SLIDE – 1 PIECE
-116x116 COMPOSITE PLATFORM - 3 PIECES
-HELIOCLIDE SLIDE EXTENSION - 1 PIECE
-POLYETHYLENE SLIDE BARRIER - 1 PIECE
-POLYETHYLENE PLATFORM BARRIER - 2 PIECES
-POLYETHYLENE SLIDE BELT - 1 PIECE
-SPIRAL SLIDE METAL PLATFORM RAILING - 1 PIECE
-H:100CM LADDER WOODEN STEP - 4 PIECES
-H:100CM LADDER AND RAILING - 1 PIECE
-H:50CM COMPOSITE LADDER - 2 PIECES
-H:50CM LADDER AND RAILING - 2 PIECES
-H:200CM TOWER PIPE - 4 PIECES
-H:150CM TOWER PIPE - 4 PIECES
-H:100CM TOWER PIPE - 4 PIECES
-COMMANDO PULL-UP CLIMBING - 1 PIECE
-H:100 CM UFO CLIMBING - 1 PIECE
-METAL CLIMBING ENTRY - 1 PIECE
POLYETHYLENE PRODUCTS
Low or common density linear polyethylene (LLDPE-Linear Low Density Polyethylene) is a thermoplastic used in various products.
It is a semi-permeable, softenable and highly durable polymer, and is a highly preferred product in the industry due to its low cost and high resistance. Polyethylene is classified into various categories based on its density and chemical properties.
Its mechanical properties depend on its molecular weight, crystal structure and branching type. Although its properties vary according to types; good resistance to external environmental conditions and moisture, flexibility, weak mechanical strength and superior chemical resistance can be listed as its general properties. Polyethylene products are used in the production of slides, stairs, railings, barriers, accessories, roofs etc.
In order to prevent color fading in polyethylene products, the ''Light Fastness'' test value of masterbatch dyes used to color polyethylene products should be 6 or above.
Product thickness should be minimum 6 mm at points of the material exposed to pressure and friction, and minimum 4 mm in barrier and shade products that are not exposed to any pressure. The material should be distributed evenly and equal thickness should be created. The deviation tolerance of the wall thickness and dimensions of the products is 5%.
BEARING CONSTRUCTION
It will be manufactured in accordance with TS EN 10219-2, TS-6476, DIN 2394 standards, with a minimum diameter of 114 mm and a minimum wall thickness of 2 mm, by cold forming and high frequency welding and within the tolerance, size and section size range in the standard; It will consist of circular cross-section steel pipes.This carrier construction will consist of pipes painted by sandblasting and baking with polyester-based electrostatic powder oven paint.
ELECTROSTATIC POWDER OVEN PAINT
In order to remove oil, dirt and rust that will prevent painting on all metal parts, the pores on the material will be opened with the sandblasting method, which is the most effective method, and the material will be made ready for painting in order to hold the paint better. ,
It will be done by spraying the fine ball material filled into a pressure-resistant cabin with pressurized air to open the pores where the paint will hold and to remove the oil, rust and dirt on the metal material.
After all the metal parts are manufactured, they will be coated with polyester-based electrostatic paint and then baked in an oven at 200-220 degrees for 20 minutes to complete the painting process.
After all the metal parts are manufactured, they will first be rinsed in a 5% concentration degreasing bath at 70 degrees for 10 minutes and then immersed in a 1% concentration iron bath at 50 degrees for 15 minutes.
Then, rinsing and drying processes will be carried out again, the material will be coated with durable polyester-based powder paint for electrostatic system exteriors and baked in ovens at 180-200 degrees for 20-30 minutes to complete the painting process. The entire product will be painted as a single piece after welding to prevent the welded areas from rusting.
