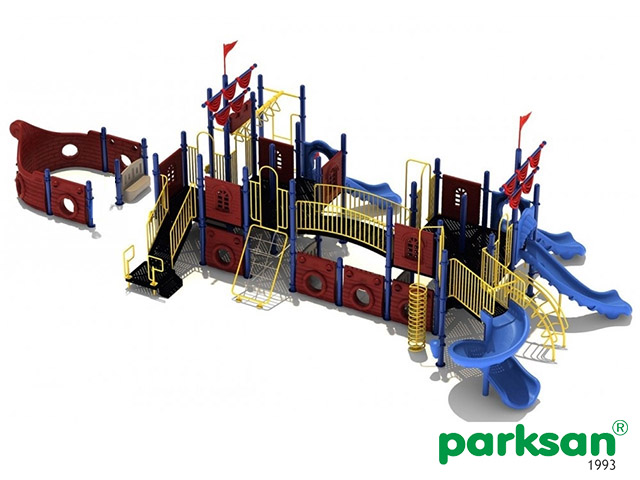

PRODUCT TECHNICAL SPECIFICATIONS
Age Range: 5-12 years
Fall Height: 170 cm
Safety Area: 205 m2
PRODUCT SPARE PARTS
-POLYETHYLENE SHIP NOSE KIT – 1 PIECE
-POLYETHYLENE SHIP PANEL – 9 PIECES
-POLYETHYLENE SEAT PANEL RAILING – 2 PIECES
-POLYETHYLENE LANDING PANEL – 6 PIECES
-METAL PANEL – 2 PIECES
-H: 200 cm METAL SWINGING UNIT – 1 PIECE
-COMPOSITE LADDER - 1 PIECE
-METAL LADDER RAILING – 1 PIECE
-METAL CLIMBING ELEMENT – 4 PIECES
-METAL CLIMBING ENTRY – 6 PIECES
-METAL VERTICAL CLIMBING LADDER – 1 PIECE
-116X116 SQUARE COMPOSITE PLATFORM – 10 PIECES
-METAL BRIDGE RAILING – 1 PIECE
-METAL SPRING BRIDGE CROSSING – 1 PIECE
-POLYETHYLENE STEERING FIGURE – 1 PIECE
-POLYETHYLENE SHIP FIGURE – 2 PIECES
-POLYETHYLENE FLAG FIGURE – 2 PIECES
-H: 150 cm RIGHT INCLINED SLIDE – 3 PIECES
-H: 150 cm HELIOS SLIDE – 1 PIECE
-H:150 cm TOWER PIPE – 10 PIECES
-H:100 cm TOWER PIPE – 10 PIECES
POLYETHYLENE PRODUCTS
Low or common density linear polyethylene (LLDPE-Linear Low Density Polyethylene) is a thermoplastic used in various products.
It is a semi-permeable, softenable and highly durable polymer, and it is a highly preferred product in the industry due to its low cost and high resistance. Polyethylene is classified in various categories based on its density and chemical properties.
Its mechanical properties depend on its molecular weight, crystal structure and branching type. Although its properties vary according to types; good resistance to external environmental conditions and moisture, flexibility, weak mechanical strength and superior chemical resistance can be listed as its general properties. Polyethylene products are used in the production of slides, stairs, railings, barriers, accessories, roofs, etc.
In order to prevent color fading in polyethylene products, the ''Light Fastness'' test value of masterbatch dyes used to color polyethylene products should be 6 or above.
The product wall thickness should be minimum 6 mm at points exposed to pressure and friction, and minimum 4 mm in barrier and shade products that are not exposed to any pressure. The material should be distributed equally and should create equal thickness. The deviation tolerance of the wall thickness and dimensions of the products is 5%.
BEARING CONSTRUCTION
It is cold formed in accordance with TS EN 10219-2, TS-6476, DIN 2394 standards with a minimum diameter of 114 mm and a minimum wall thickness of 2 mm and welded with high frequency welding, and the tolerance in the standard,It will be manufactured in the size and cross-section range; It will consist of circular cross-section steel pipes. This carrier construction will consist of pipes painted by sandblasting and baking with polyester-based electrostatic powder oven paint.
ELECTROSTATIC POWDER OVEN PAINT
In order to remove oil, dirt and rust that will prevent painting on all metal parts, the pores on the material will be opened with the sandblasting method, which is the most effective method, and it will be made ready for painting in order to hold the paint better. ,
It will be done by spraying the fine ball material filled into a pressure-resistant cabin with pressurized air to open the pores where the paint will hold and to remove the oil, rust and dirt on the metal material.
After all the metal parts are manufactured, they will be coated with polyester-based electrostatic paint and then baked in an oven at 200-220 degrees for 20 minutes to complete the painting process.
After all the metal parts are manufactured, they will first be rinsed in a 5% concentration degreasing bath at 70 degrees for 10 minutes and then immersed in a 1% concentration iron bath at 50 degrees for 15 minutes.
Then, rinsing and drying processes will be carried out again, the material will be coated with durable polyester-based powder paint for electrostatic system exteriors and baked in ovens at 180-200 degrees for 20-30 minutes to complete the painting process. The entire product will be painted as a single piece after welding to prevent the welded areas from rusting.The painting process will be completed by coating the material electrostatic system exteriors with durable polyester-based powder paint and baking in ovens at 180-200 degrees for 20-30 minutes. The entire product will be painted as a single piece after welding to prevent rust on the welded areas.The painting process will be completed by coating the material electrostatic system exteriors with durable polyester-based powder paint and baking in ovens at 180-200 degrees for 20-30 minutes. The entire product will be painted as a single piece after welding to prevent rust on the welded areas.
