PRODUCT TECHNICAL PARTS
Age Range: 2-12 years
Fall Height: 180 cm
Safety Zone: 150 m²

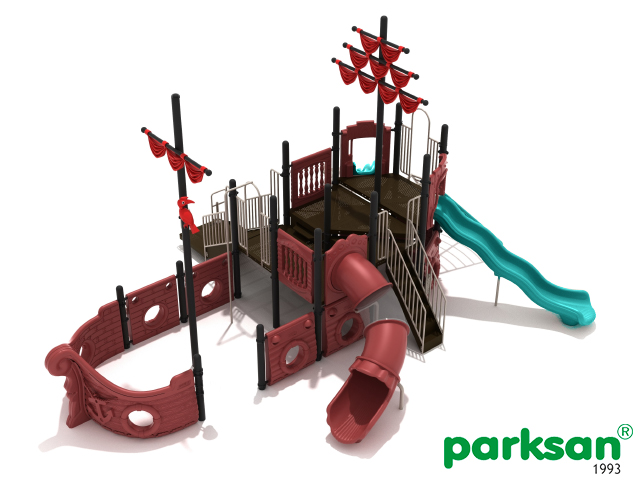

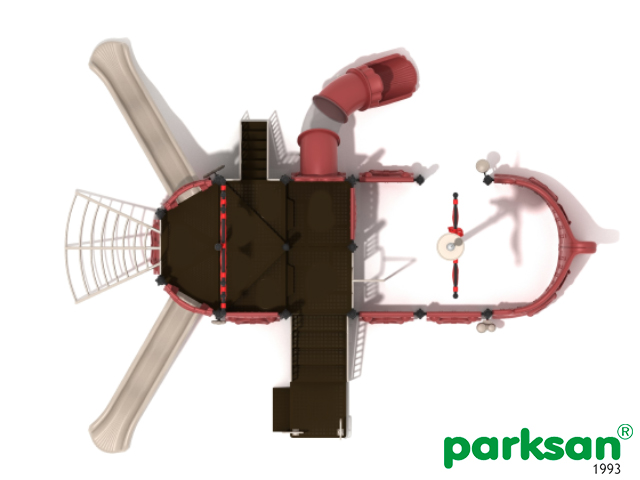

PRODUCT SPARE PARTS
-H:150 cm METAL CLIMBING LADDER – 1 PIECE
-METAL CLIMBING ELEMENT – 1 PIECE
-METAL CLIMBING ENTRY – 2 PIECES
-COMPOSITE LADDER - 2 PIECES
-METAL LADDER RAILING – 2 PIECES
-POLYETHYLENE SHIP NOSE KIT – 1 PIECE
-POLYETHYLENE SHIP PANEL – 8 PIECES
-POLYETHYLENE PLATFORM BARRIER – 2 PCS
-H: 150 cm TOWER PIPE – 12 PCS
-METAL TRIANGULAR PLATFORM – 4 PCS
-METAL SQUARE PLATFORM – 2 PCS
-POLYETHYLENE SHIP FIGURE – 2 PCS
-H: 100 cm RIGHT INCLINED TUBE SLIDE -1 PCS
-H: 150 cm WAVY SLIDE – 2 PCS
POLYETHYLENE PRODUCTS
Low or common density linear polyethylene (LLDPE) is a thermoplastic used in various products.
It is a semi-permeable, softenable and quite durable polymer, and is a highly preferred product in the industry due to its low cost and high resistance. Polyethylene is classified into various categories based on its density and chemical properties.
Its mechanical properties depend on its molecular weight, crystal structure and branching type. Although its properties vary according to the types; good resistance to external environment conditions and moisture, flexibility, weak mechanical strength and superior chemical resistance can be counted as general properties. Polyethylene products are used in the production of slides, stairs, railings, barriers, accessories, roofs etc.
In order to prevent color fading in polyethylene products, the ''Light Fastness'' test value of masterbatch dyes used to color polyethylene products should be 6 or above.
Product thickness should be minimum 6 mm at points exposed to pressure and friction, and minimum 4 mm in barrier and shade products that are not exposed to any pressure. The material should be distributed evenly and create equal thickness. The deviation tolerance of the wall thickness and dimensions of the products is 5%.
BEARING CONSTRUCTION
It will be manufactured in accordance with TS EN 10219-2, TS-6476, DIN 2394 standards with a minimum diameter of 114 mm and a minimum wall thickness of 2 mm, by cold forming with high frequency welding and by manufacturing within the tolerance, dimension and section measurement range in the standard; It will consist of circular cross-section steel pipes. This bearing construction will consist of pipes painted by baking with polyester-based electrostatic powder oven paint over sandblasting.
ELECTROSTATIC POWDER OVEN PAINT
Oil that will prevent painting on all metal parts,The most effective method for removing dirt and rust is to use sandblasting to open pores on the material and make it ready for painting so that the paint can adhere better. ,
It will be done by spraying the fine ball material filled into a pressure-resistant cabin with pressurized air to open the pores where the paint will hold and to remove the oil, rust and dirt on the metal material.
After all the metal parts are manufactured, they will be coated with polyester-based electrostatic paint and then baked in an oven at 200-220 degrees for 20 minutes to complete the painting process.
After all the metal parts are manufactured, they will first be rinsed in a 5% concentration degreasing bath at 70 degrees for 10 minutes and then immersed in a 1% concentration iron bath at 50 degrees for 15 minutes.
Then, rinsing and drying processes will be carried out again, the material will be coated with durable polyester-based powder paint for electrostatic system exteriors and baked in ovens at 180-200 degrees for 20-30 minutes to complete the painting process. The entire product will be painted as a single piece after welding to prevent the welded areas from rusting.
