PRODUCT TECHNICAL SPECIFICATIONS

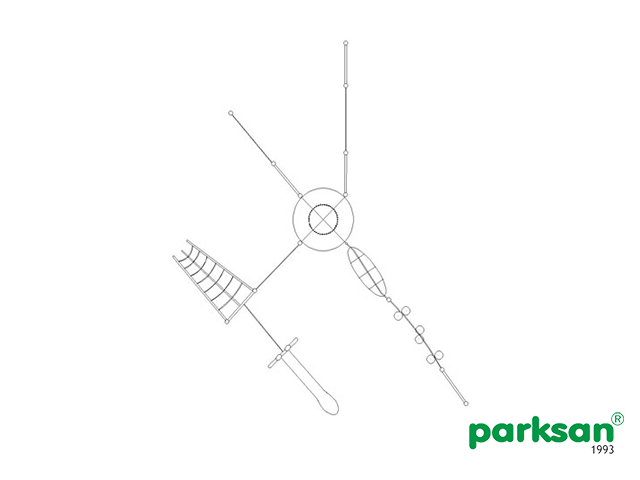

Usage Area: 1484x1212 cm
Safety Area: 1490x1216 cm
Age Group: 5+
Capacity: 40-70 people
Number of Slides: 1
PRODUCT SPARE PARTS
-H:245cm SQUARE CLIMBING UNIT – 1 PIECE
-H:245cm HEXAGONAL CLIMBING UNIT – 1 PIECE
-H:245cm SINGLE POLE ROUND SWINGING ELEMENT – 1 PIECE
-H:245cm ROCK CLIMBING UNIT – 4 PIECES
-H:120cm CURVED PEBBLE BRIDGE – 1 PIECE
-H:120cm CURVED HELIX CLIMBING LADDER – 2 PIECES
-H:230cm SPRING CLIMBING ELEMENT – 2 PIECES
-H:230cm HORIZONTAL CLIMBING ELEMENT – 1 PIECE
POLYETHYLENE PRODUCTS
Low or common density linear polyethylene (LLDPE) is a thermoplastic used in various products.
While it is a semi-permeable, softenable and quite durable polymer, it is a highly preferred product in the industry due to its low cost and high resistance. Polyethylene is classified in various categories based on its density and chemical properties.
Its mechanical properties depend on its molecular weight, crystal structure and branching type. Although its properties vary according to types; good resistance to external conditions and moisture, flexibility, weak mechanical strength and superior chemical resistance can be counted as general features. Polyethylene products are used in the production of slides, stairs, railings, barriers, accessories, roofs etc.
In order to prevent color fading in polyethylene products, the ''Light Fastness'' test value of masterbatch paints used to color polyethylene products should be 6 or above.
Product thickness should be minimum 6 mm at points exposed to pressure and friction, and minimum 4 mm in barrier and shade products that are not exposed to any pressure. The material should be distributed equally and should create equal thickness. The deviation tolerance of the product thicknesses and dimensions is 5%.
ELECTROSTATIC POWDER OVEN PAINT
In order to remove oil, dirt and rust that will prevent painting on all metal parts, the pores on the material will be opened with the most effective method of sandblasting and it will be made ready for painting in order to hold the paint better. ,
It will be done by spraying the fine ball material filled into a pressure-resistant cabin with compressed air to open the pores where the paint will hold and to remove the oil, rust and dirt on the metal material.
After all the metal parts are manufactured, they will be coated with polyester-based electrostatic paint and then baked in an oven at 200-220 degrees for 20 minutes to complete the painting process.
After all the metal parts are manufactured,After rinsing in a 5% concentration degreasing bath at 70 degrees for 10 minutes, it will be immersed in a 1% concentration iron bath at 50 degrees for 15 minutes.
Then, rinsing and drying processes will be carried out again, the material will be coated with durable polyester-based powder paint for electrostatic system exteriors and the painting process will be completed by baking in ovens at 180-200 degrees for 20-30 minutes. The entire product will be painted as a single piece after welding to prevent rust on the welded areas.
