PRODUCT TECHNICAL SPECIFICATIONS

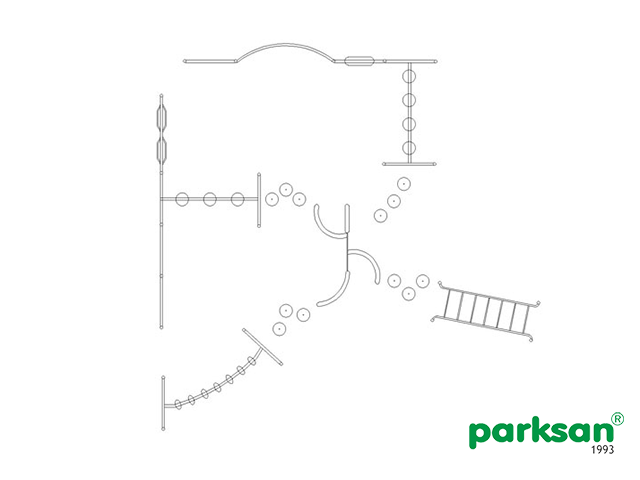

Usage Area: 753x772 cm
Security Area: 1053x1072 cm
Age Group: 5+
Capacity: 40-65
PRODUCT SPARE PARTS
-H:245cm SINGLE POLE CROSS CHAIN CLIMBING ELEMENT – 1 PIECE
-H:245cm CURVED NET CLIMBING ELEMENT – 1 PIECE
-H:245cm 4-WHEEL SWINGING ELEMENT– 1 PIECE
-H:245cm SINGLE ROW GRAVEL BRIDGE - 1 PIECE
-H:60cm SINGLE GRAVEL
-H: 245cm HOLE CLIMBING UNIT – 3 PCS
-H: 245cm 45 DEGREE TRAPEDOUS CLIMBING ELEMENT - 1 PCS
-H: 245cm PULL-UP BOX CLIMBING ELEMENT – 1 PCS
-H: 245cm INCLINED CLIMBING ELEMENT – 1 PCS
-CYLINDER BALANCE ELEMENT – 1 PCS
POLYETHYLENE PRODUCTS
Low or common density linear polyethylene (LLDPE) is a thermoplastic used in various products.
It is a semi-permeable, softenable and highly durable polymer, and is a highly preferred product in the industry due to its low cost and high resistance. Polyethylene is classified into various categories based on its density and chemical properties.
Its mechanical properties depend on its molecular weight, crystal structure and branching type. Although its properties vary according to the types; good resistance to external environment conditions and moisture, flexibility, weak mechanical strength and superior chemical resistance can be counted as general properties. Polyethylene products are used in the production of slides, stairs, railings, barriers, accessories, roofs etc.
In order to prevent color fading in polyethylene products, the ''Light Fastness'' test value of masterbatch dyes used to color polyethylene products should be 6 or above.
Product thickness should be minimum 6 mm at points exposed to pressure and friction, and minimum 4 mm in barrier and shade products that are not exposed to any pressure. The material should be distributed evenly and create equal thickness. The deviation tolerance of the wall thickness and dimensions of the products is 5%.
ELECTROSTATIC POWDER OVEN PAINT
In order to remove the oil, dirt and rust that will prevent painting on all metal parts, the pores will be opened on the material by the sandblasting method, which is the most effective method, and the material will be made ready for painting in order to hold the paint better. ,
It will be done by spraying the fine ball material filled in a pressure-resistant cabin with pressurized air to open the pores where the paint will hold and removing the oil, rust and dirt on the metal material.
After all metal parts are manufactured, they will be coated with polyester-based electrostatic paint and baked in an oven at 200-220 degrees for 20 minutes to complete the painting process.
After all metal parts are manufactured, they will first be rinsed in a 5% concentration degreasing bath at 70 degrees for 10 minutes and then immersed in a 1% concentration iron bath at 50 degrees for 15 minutes.
Then, rinsing and drying processes will be carried out again, the material will be coated with durable polyester-based powder paint for electrostatic system exteriors and baked in ovens at 180-200 degrees for 20-30 minutes to complete the painting process. In order to prevent rust, the entire product will be painted as a single piece after welding.
