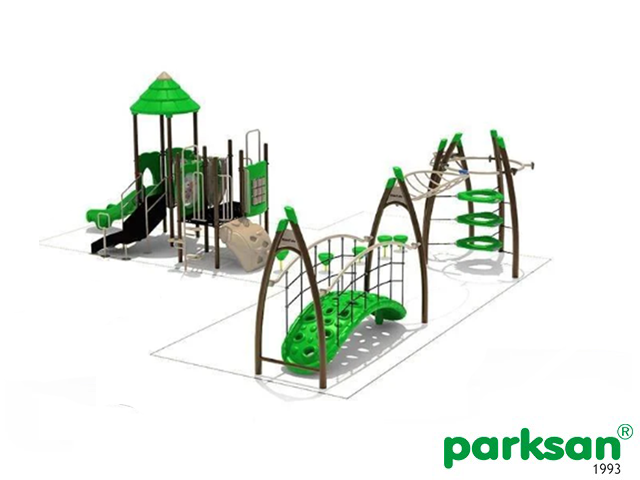

PRODUCT TECHNICAL SPECIFICATIONS

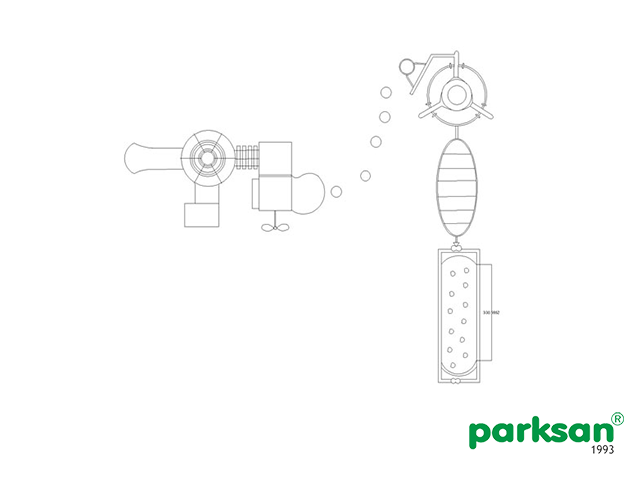

Usage Area: 1315x1146 cm
Safety Area: 1320x1150 cm
Age Group: 5+
Capacity: 35-45 Persons
Number of Slides: 1
PRODUCT SPARE PARTS
-POLYETHYLENE ROOF - 1 PIECE
-POLYETHYLENE SLIDE BARRIER - 1 PIECE
-POLYETHYLENE PLATFORM BARRIER - 1 PIECE
-116x116 PE COMPOSITE SQUARE PLATFORM - 3 PIECES
-H:100cm POLYETHYLENE FLAT SLIDE - 1 PIECE
-H:100cm PE COMPOSITE CLOSED LADDER
-H:100cm METAL LADDER RAILING - 1 PIECE
-H:100cm TOWER PIPE - 10 PIECES
-BONE BRIDGE – 1 PIECE
-TOWER XY GAME PANEL – 1 PIECE
-NETWORK BRIDGE – 1 PIECE
-H:60cm SINGLE PEBBLE – 5 PIECES
-H:245cm CURVED OVERHEAD ROTATION ELEMENT – 1 PIECE
-H:245cm SINGLE PILLAR OVERHEAD REVERSE HORIZONTAL CLIMBERS – 1 PIECE
-H:245cm TORONTO CROSSING CLIMBING ELEMENT – 1 PIECE
POLYETHYLENE PRODUCTS
Low or common density linear polyethylene (LLDPE-Linear Low Density Polyethylene) is a thermoplastic used in various products.
It is a semi-permeable, softenable and highly durable polymer, and is a highly preferred product in the industry due to its low cost and high resistance. Polyethylene is classified into various categories based on its density and chemical properties.
Its mechanical properties depend on its molecular weight, crystal structure and branching type. Although its properties vary according to the types; good resistance to external environmental conditions and moisture, flexibility, weak mechanical strength and superior chemical resistance can be counted as its general properties. Polyethylene products are used in the production of slides, stairs, railings, barriers, accessories, roofs, etc.
In order to prevent color fading in polyethylene products, the ''Light Fastness'' test value of masterbatch dyes used to color polyethylene products should be 6 or above.
The product wall thickness should be minimum 6 mm in points exposed to pressure and friction, and minimum 4 mm in barrier and shade products that are not exposed to any pressure. The material should be distributed equally and should create equal thickness. The deviation tolerance of the wall thickness and dimensions of the products is 5%.
ELECTROSTATIC POWDER OVEN PAINT
In order to remove oil, dirt and rust that will prevent painting on all metal parts, the pores on the material will be opened with the most effective method of sandblasting and it will be made ready for painting in order to hold the paint better.
The fine ball material filled into a pressure-resistant cabin is sprayed with compressed air to open the pores where the paint will hold and to remove the oil on the metal material,It will be done by removing rust and dirt.
After all metal parts are manufactured, they will be coated with polyester-based electrostatic paint and then baked in an oven at 200-220 degrees for 20 minutes to complete the painting process.
After all metal parts are manufactured, they will first be rinsed in a 5% concentration degreasing bath at 70 degrees for 10 minutes and then immersed in a 1% concentration iron bath at 50 degrees for 15 minutes.
Then, rinsing and drying processes will be done again, the material will be coated with durable polyester-based powder paint for electrostatic system exteriors and baked in ovens at 180-200 degrees for 20-30 minutes to complete the painting process. In order to prevent rust, the entire product will be painted as a single piece after welding.
