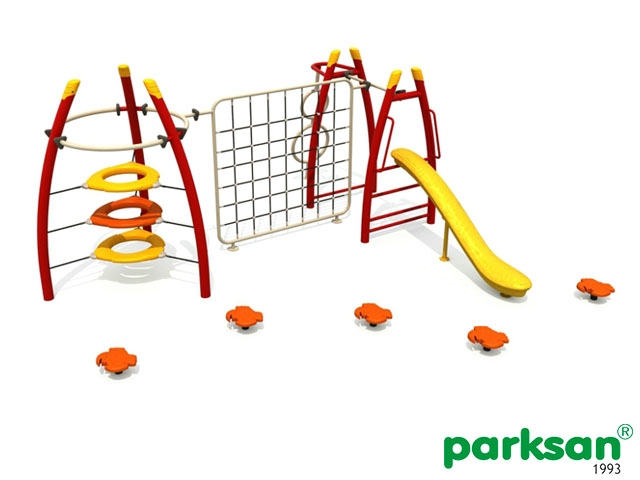

PRODUCT TECHNICAL SPECIFICATIONS
Usage Area: 770x735 cm
Safety Area: 774x740 cm
Age Range: 3-12
Size: 580x520x270 cm
Capacity: 7-10 people
Number of Slides: 1
PRODUCT SPARE PARTS
-H:245cm TORONTO PASSAGE CLIMBING ELEMENT – 1 PIECE
-H:60cm SINGLE PEBBLE – 5 PIECES
-H:245cm CURVED SQUARE NET CLIMBING ELEMENT – 1 PIECE
-H:245cm CIRCULAR METAL CLIMBING – 1 PIECE
POLYETHYLENE PRODUCTS
Low or common Linear Low Density Polyethylene (LLDPE) is a thermoplastic used in various products.
It is a semi-permeable, softenable and highly durable polymer, and is a highly preferred product in the industry due to its low cost and high resistance. Polyethylene is classified into various categories based on its density and chemical properties.
Its mechanical properties depend on its molecular weight, crystal structure and branching type. Although its properties vary according to the types; good resistance to external environmental conditions and moisture, flexibility, weak mechanical strength and superior chemical resistance can be listed as its general properties. Polyethylene products are used in the production of slides, stairs, railings, barriers, accessories, roofs, etc.
In order to prevent color fading in polyethylene products, the ''Light Fastness'' test value of masterbatch dyes used to color polyethylene products should be 6 or above.
The product wall thickness should be minimum 6 mm in points exposed to pressure and friction, and minimum 4 mm in barrier and shade products that are not exposed to any pressure. The material should be distributed equally and should create equal thickness. The deviation tolerance of the wall thickness and dimensions of the products is 5%.
ELECTROSTATIC POWDER OVEN PAINT
In order to remove oil, dirt and rust that will prevent painting on all metal parts, the pores on the material will be opened with the most effective method of sandblasting and it will be made ready for painting in order to hold the paint better. ,
It will be done by spraying the fine ball material filled into a pressure-resistant cabin with pressurized air to open the pores where the paint will hold and to remove the oil, rust and dirt on the metal material.
After all the metal parts are manufactured, they will be coated with polyester-based electrostatic paint and baked in an oven at 200-220 degrees for 20 minutes to complete the painting process.
After all the metal parts are manufactured, they will first be rinsed in a 5% concentration degreasing bath at 70 degrees for 10 minutes and then immersed in a 1% concentration iron bath at 50 degrees for 15 minutes.
Then, rinsing and drying processes will be carried out again,The painting process will be completed by coating the material electrostatic system exteriors with durable polyester-based powder paint and baking in ovens at 180-200 degrees for 20-30 minutes. The entire product will be painted as a single piece after welding to prevent rust on the welded areas.
